21.5 -Inch transmission type industrial touch panel

Product > SPD transmission type industrial touch panel > 21.5 -Inch transmission type industrial touch panel > SPD-2200E
SPD-2200E
SPD-2200E
SPD-2200E is an embedded ultra-thin industrial touch panel. It is equipped with a 21.5-inch high-definition LCD screen with a resolution of 1920×1080 and a projected multi-point capacitive touch screen. Supports HDBaseT and DP signal transmission interfaces, with multiple USB interface expanders. The maximum communication distance between the PC and the touch panel can reach 100 meters, and the entire machine is powered by DC24V. The front panel has an IP65 protection rating. All interfaces are designed with fastening and have passed CE/FCC certification, making it suitable for demanding human-machine interaction industrial sites.
Product manual（PDF） Technical data Ordering information

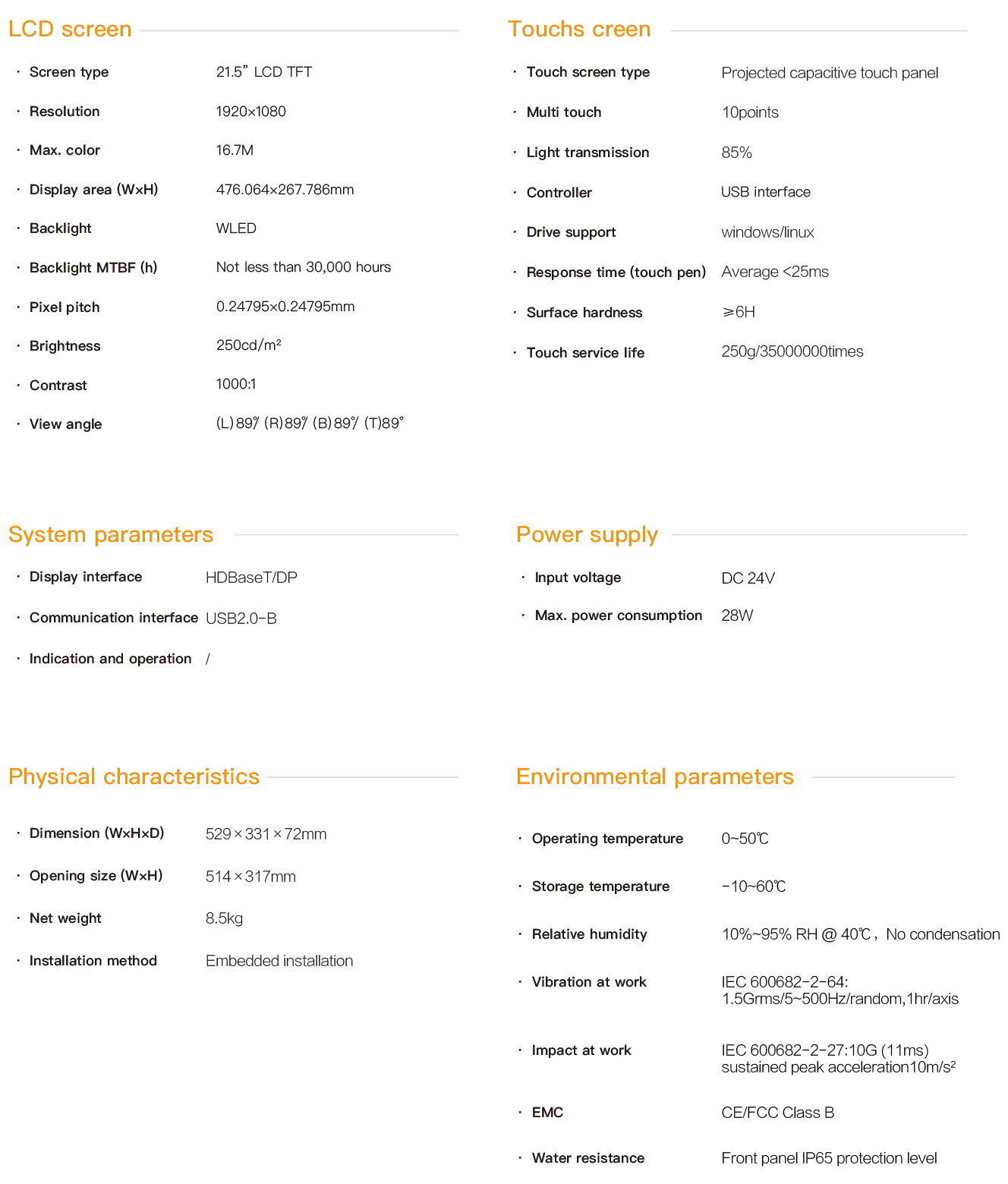

Product detailed specifications（SPD-2200E)
Product Quotation Information

XSubmit contact information for product download information

XOrdering information
