19 -Inch Industrial touch panel

Product > NPD series industrial touch panel > 19 -Inch Industrial touch panel > NPD-194
NPD-194
NPD-194

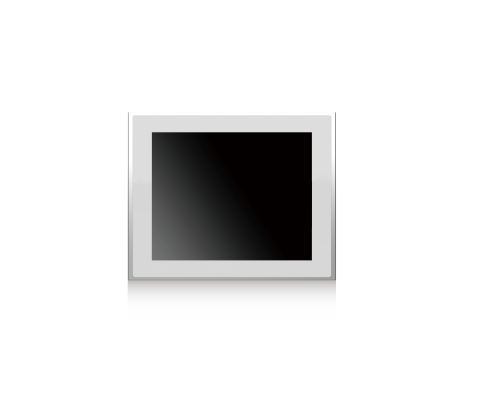

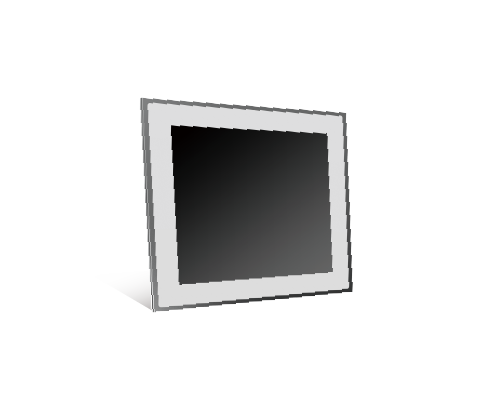

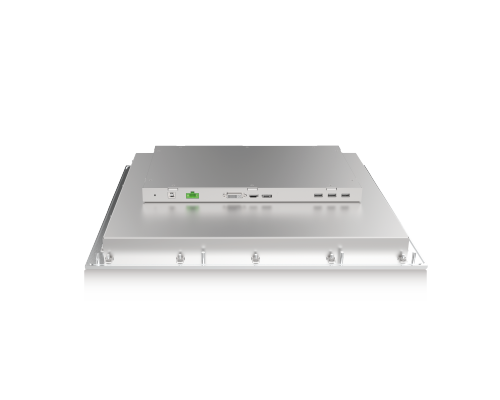

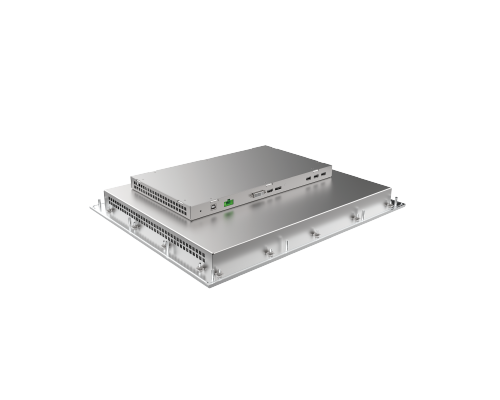

NPD-194 is an embedded ultra-thin industrial touch panel. It is equipped with a 19-inch high-definition LCD screen with a resolution of 1920*1024 and a projected multi-point capacitive touch screen. It supports three signal transmission interfaces: HDMI, DVI and DP, as well as multiple USB interface expansions. The maximum communication distance between the PC and the touch panel can reach 15 meters, and the entire machine is powered by DC24V. The front panel has an IP65 protection rating. All interfaces are designed with fastening and have passed CE/FCC certification, making it suitable for demanding human-machine interaction industrial sites.
Product manual（PDF） Technical data Ordering information

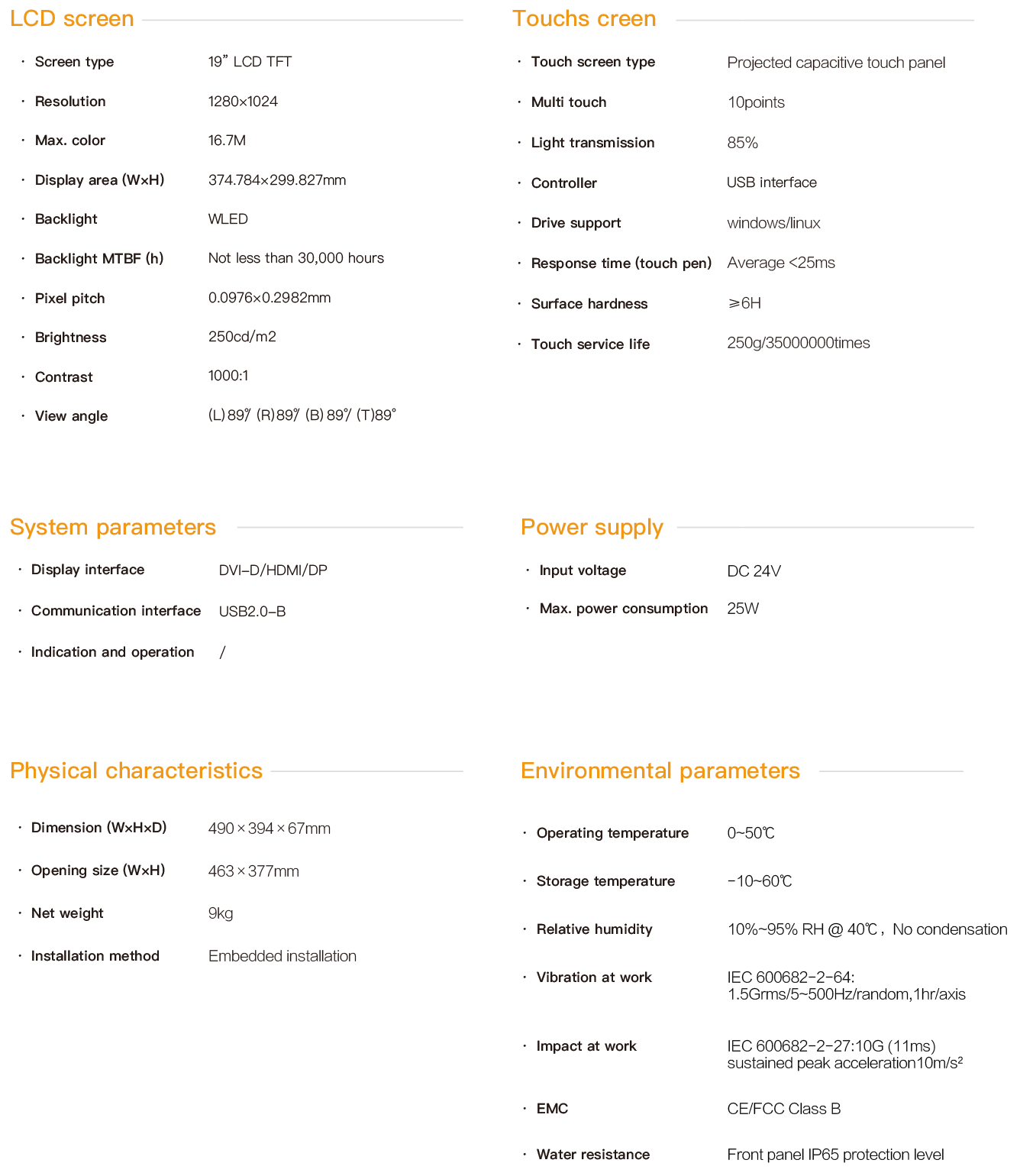

Product detailed specifications（NPD-194)
