Zhiyu Beyond Boundaries: Industrial Displays Empowering the Precision and Agility of AGVs

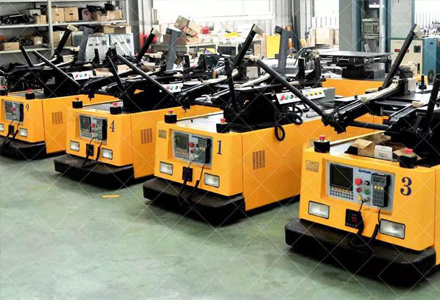

AGV (Automated Guided Vehicle) robots are the core equipment for modern intelligent logistics and intelligent manufacturing. They are wheeled mobile robots equipped with automatic navigation modules such as electromagnetic, optical, and laser systems, powered by batteries, and capable of traveling autonomously along pre-planned routes without the need for human intervention.
Automated Guided Vehicle

 Customer core requirements:

Achieve stable and real-time human-machine interaction and system collaboration in harsh industrial environments.



Main technical indicators of industrial touch panels:

1. Display performance: 6.5-inch LCD screen.

2. Interfaces: RS232 or USB optional, response time ≤ 15ms.

3. Structural installation: Full steel box structure, surface treated with plastic spraying.

4. Installation: Panel embedded + VESA wall mounting dual mode.

5. Power supply: DC 6~30V wide voltage input (standard 12V).

6. Interfaces: VGA video input, power supply uses anti-detachment fastening terminals.



Product features of industrial touch panel:

1. Ultra-small high-brightness display: Compact 6.5-inch design, clear visibility even in strong light, suitable for industrial scenarios with limited space.

2. Industrial-grade robustness: Front panel with IP65 protection level, all-steel box structure.

3. Interfaces and power supply: Dual communication interfaces of RS232/USB; 6-30V wide voltage input, anti-reverse connection design, strong power supply adaptability.

4. Convenient installation and maintenance: Supports embedded panel (fixed with 4 hooks) and VESA wall mounting dual modes, easy installation.
