Overcoming the Challenges of Laser Cutting - Industrial Customized Solution for Touchscreen Panels
Laser cutting machine is a core piece of modern precision processing equipment based on laser technology. By focusing a high-energy-density laser beam onto the surface of the material, it causes the material to rapidly melt, vaporize or reach the ignition point. In combination with auxiliary gases (such as oxygen, nitrogen) to blow away the slag, and with the control of motion axes by the numerical control system, it achieves efficient cutting of metal and non-metal materials.

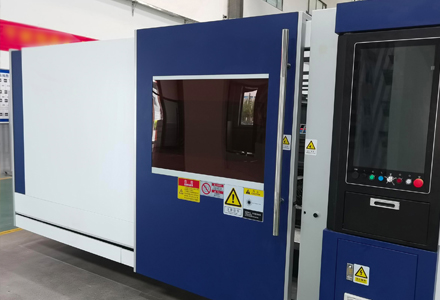

Laser Cutting Machine

Customer core requirements：

The industrial touch panel and controller can communicate over long distances. It is resistant to laser radiation, electromagnetic interference, as well as high and low temperatures, vibrations, and metal dust in the workshop. The panel is wear-resistant and scratch-proof, and supports 24-hour continuous stable operation. It is also anti-static and anti-surge.



Main technical indicators of industrial touch panels:

1. LCD Screen: 21.5-inch LCD display

2. Touch Screen: Multi-touch capacitive screen

3. Interfaces: DVI video interface, 3 USB expansion ports

4. Indicators and Controls: Switch buttons and electrical buttons expansion

5. Power Supply: DC 6 - 30V

6. Installation and Accessories: VESA mounting


Product features of industrial touch panel：

1. Interface fastening design: DVI, USB and power interface fastening design

2. Industrial power supply design: Overcurrent, overvoltage and short-circuit protection, reverse connection prevention design

3. Ultra-long distance communication: Host and operation console can communicate up to 20 meters, display picture is clear, touch is precise and sensitive

4. Waterproof: Front panel has IP65 protection grade, dust-proof, waterproof and oil-proof

5. EMC: CE/FCC certification
