Industrial display adaptation solution for CNC bending machines issues
The CNC bending machine is the core equipment for modern metal sheet forming processing. Based on the precise control of the CNC system, it drives the upper die (bending die) to press downward through the driving mechanism, causing the metal sheet to undergo plastic deformation along the predetermined bending line under the cooperation of the upper and lower dies, thereby obtaining the required angle and curvature of the workpiece. The core working logic is: the CNC system parses the processing drawing parameters, drives the bending axis (such as X/Y/Z axes with multi-axis linkage) to achieve precise lifting and lowering of the slider and positioning of the worktable, and cooperates with the special bending die and clamping device to complete efficient and high-precision sheet bending operations.

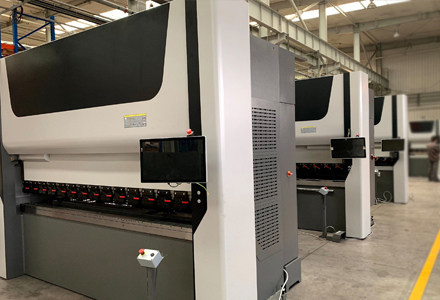

CNC Bending Machine

Customer core requirements:

The CNC operation console communicates with the controller over a long distance, operates continuously for 24 hours, ensuring that the display screen is clear without any flickering, blooming, or noise; the touch screen operates smoothly and agilely, without any malfunction, lag, or skipping phenomena.



Technical specifications for industrial touch panels：

1. LCD Screen: 21.5-inch LCD display

2. Touch Screen: Multi-touch capacitive screen

3. Interfaces: DVI video interface, 3 USB expansion ports

4. Indication and Operation: Emergency stop button extension

5. Power Supply: DC 6 - 30V

6. Installation and Accessories: VESA mounting



Product features of industrial touch panel:

1. Interface fastening design: DVI, USB and power interface fastening design

2. Industrial power supply design: Overcurrent, overvoltage and short-circuit protection, reverse connection prevention design

3. Ultra-long distance communication: Host and operation console can communicate up to 20 meters, with clear display and precise and sensitive touch

4. Waterproof: Front panel has IP65 protection level, dust-proof, waterproof and oil-proof

5. EMC: CE/FCC certification
