Electrical Discharge Machining (EDM) - Touch Control Workstation Solution
Electrical machining machines are specialized processing equipment that utilize electrical energy, electrochemical energy or thermal energy to remove, deform or coat materials. They are mainly used for processing high-hardness materials, complex-shaped parts and precision molds. The core types include wire-cut electrical discharge machining machines, electrical discharge forming machines, electrical discharge piercing machines and electrolytic processing machines, etc.

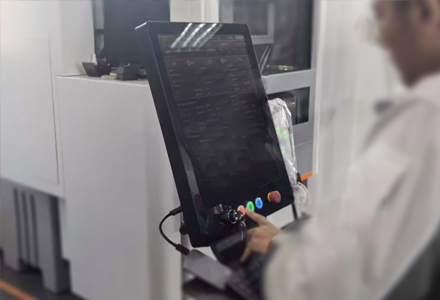

EDM electrical machining center

Customer core requirements

The CNC operation console communicates with the controller over a long distance, operates continuously for 24 hours, ensuring that the display screen is clear without any flickering, blooming, or noise; the touch screen operates smoothly and agilely, without any malfunction, lag, or skipping phenomena.



Main technical specifications of the 19-inch CNC operation console：

1. LCD Screen: 19-inch LCD display

2. Touch Screen: Multi-touch capacitive screen

3. Interfaces: DVI video interface, 3 USB expansion ports

4. Indication and Operation: Emergency stop, key lock and electrical buttons expansion

5. Power Supply: DC 6 - 30V

6. Installation and Accessories: Lower cantilever installation, equipped with keyboard tray, handle pendant


Product features of the 19-inch CNC operation console：


1. Interface fastening design: DVI, USB and power interface fastening design

2. Industrial power supply design: Overcurrent, overvoltage and short-circuit protection, reverse connection prevention design

3. Ultra-long distance communication: Host and operation console can communicate up to 20 meters, with clear display and precise and sensitive touch

4. Waterproof: Front panel has IP65 protection level, dust-proof, waterproof and oil-proof

5. EMC: CE/FCC certification
